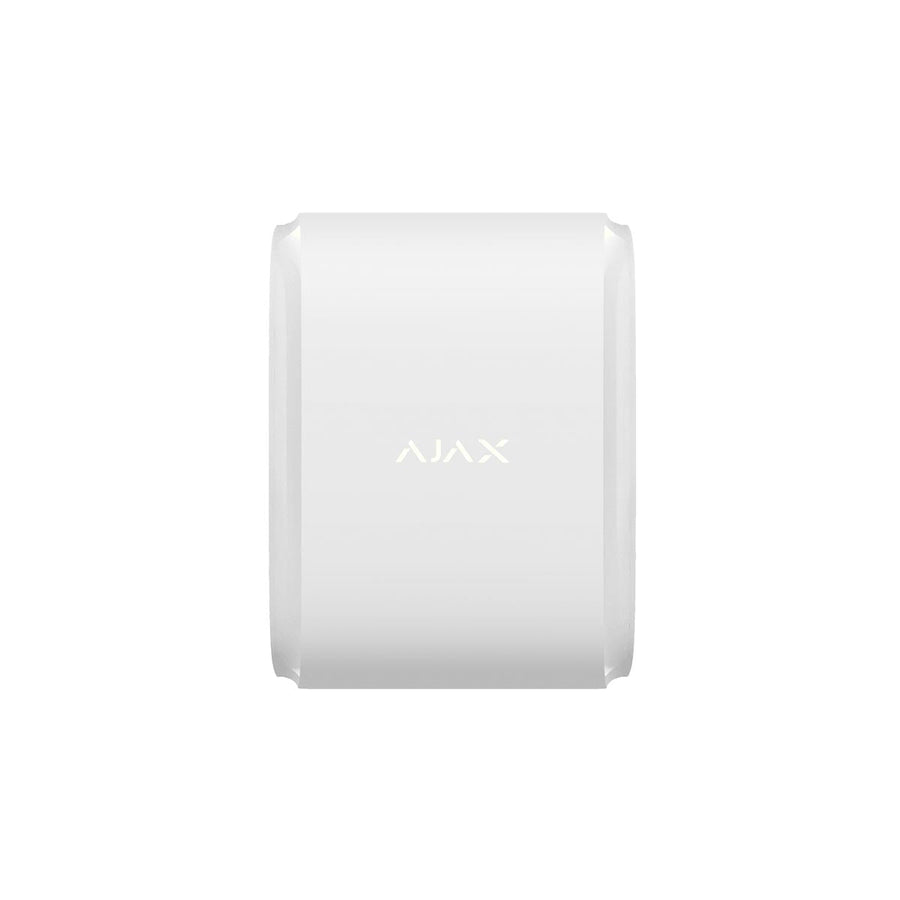

Ajax DualCurtain Outdoor White

The Ajax DualCurtain Outdoor White is a wireless bidirectional outdoor curtain motion detector with an adjustable detection range of up to 30 meters.

DualCurtain Outdoor has a narrow horizontal detection angle and is designed to control property perimeters such as windows, archways, doors, gates and passages.

Please note: DualCurtain Outdoor operates as part of an Ajax system by connecting to the compatible hubs via the Jeweller secure radio communication protocol.

The DualCurtain is compatible only with Hub Plus, Hub 2, Hub 2 Plus, Hub Hybrid, and radio signal range extenders. Connectivity with Hub and the ocBridge Plus and uartBridge integration modules is not supported.

FEATURES OF THE AJAX DUALCURTAIN OUTDOOR:

• Outdoor motion detector
• Pre-installed battery (Battery life - Up to 4 years)
• Anti-making system
• 2 x IR sensors on each side
• Motion detection distance of 4 to 15 m
• Detection angle horizontal of 4.5°
• Communication range of 1700m (in an open space/line of sight)
• Pet Immune (ignores pets with a height of 80 cm)
• One enclosure – Two independent detectors (detection range of the two optical systems is adjusted independently)
• Near Area Detection
• 5 ReX radio signal range extenders in security system
• Adjustable ping interval from 12 seconds
• In-app battery charge status
• Low battery notification
• Detector is set up via the Ajax app for iOS, Android, macOS and Windows
• System notifications delivered via push notifications, SMS and calls (if activated).
• Quick and Easy installation

INSTALLATION AND SET-UP

The Ajax DualCurtain Outdoor comes ready to operate straight out the box.

The battery is pre-installed, so there is no need to disassemble the detector. The Ajax Dual Curtain connects to the security system via the Ajax app, simply scan the QR code, add the detector to the room, and proceed to installation.
