Bosch Call station, 2 Zone PLE-2CS

PLE-2CS

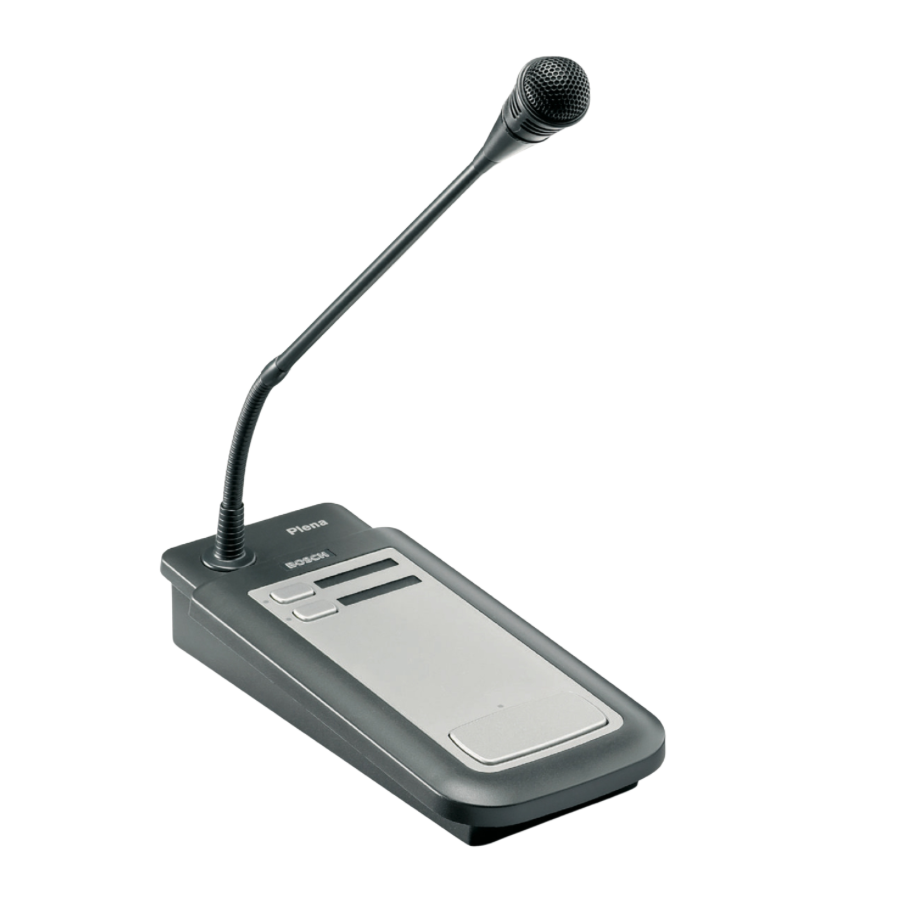

The Plena two-zone call station is a modern, high quality call station with a stable metal base design, a flexible microphone stem and a unidirectional condenser microphone. It can make calls to selected zones in a public address system built with the PLE series two-zone mixer and mixer amplifiers. In addition to tabletop use, the Plena design allows neat flush mounting in desktops.

Key Features:

• Modern two-zone call station for the PLE series
• Selectable gain
• Speech filter and limiter
• Output level control
• Loop-through option for up to 8 call stations

Gain, speech filter and intelligibility

This call station features selectable gain, a selectable speech filter, and a limiter for improved intelligibility.

Range

The call station has a balanced line level output, giving it a maximum range of 200 meters from the mixer, when using CAT-5 extension cables.

Loop-through

With the loop-through RJ-45 connector, it is possible to daisy chain multiple call stations.

Priority

The priority is automatic i.e. the call station nearest the mixer has priority and can override a call station further from the mixer. When a call is being made by a higher priority call station, a yellow light will display on the lower priority call stations.

Dip switches and status

DIP switches at the base of the call station select different microphone gain levels, chimes, and the speech filter. A service accessible rotary control provides microphone level attenuation. LEDs on the call station show which zones have been selected. An additional LED give visible feedback on the active state of the microphone and the system:

• Green flashing means standby (chime is sounding)
• Green indicates microphone active • Amber indicates a higher priority call

Controls and indicators

• 2 x status LEDs
• PTT key
• 2 x zone selection keys
• 2 x zone selection LEDs
• DIP switches • Rotary volume control
